Easily collect and report measurements in conformance with ASTM F2170
Combined sleeve and probe design simplifies the installation process and does not require consumables
In Situ Concrete Moisture (RH) Meter
PosiTector CMM IS (concrete moisture meter in-situ) probes and free mobile app guide users through the ASTM F2170 documentation criteria. View and record readings wirelessly with your Apple or Android smart device, or PosiTector DPM Advanced gage

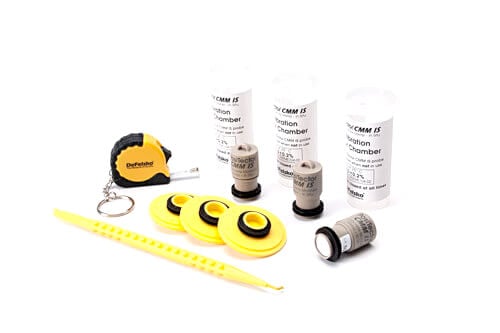

Kit Contents
The DeFelsko PosiTector CMM IS KIT B In Situ Concrete Moisture (RH) Meter Kit includes everything needed for testing:
- 3 CMM IS probes
- 3 Saturated Salt Solutions
- 3 Calibration Check Chambers
- 3 Caps
- 6 Stackable Probe Extensions
- Extraction Tool
- Tape Measure
- Ten A-76/LR-44 coin cell batteries
| |
Features
Simple
- Easily collect and report RH measurements in conformance with ASTM F2170
- No need to open hole or remove the cap. Probes remain powered on for up to 3 weeks and broadcast wirelessly via Bluetooth while in situ.
- Combined sleeve and probe design simplifies the ASTM F2170 installation process. Does not require consumables.
- Uses common coin cell batteries
Accurate
- Rapid response precision probes provides accurate, repeatable readings
- Cal Check function automatically determines whether a probe is reading within tolerance
- Certificate of Calibration showing traceability to NIST included
- Test and document in-situ concrete moisture levels in full accordance with ASTM F2170
Durable
- Reusable Smart Probes
- Solvent, acid, oil, water and dust resistant -- weatherproof
- Two year warranty on probes
Powerful
- Rapid acclimation, reduced testing time
- Blue LED confirms the probe is powered on and broadcasting
- Includes free PosiTector mobile app for analyzing and reporting data
Specifications
Specifications | Range | Accuracy | Resolution |
Temperature | 0o to 80o C | 0.5o C | 0.1o C |
32o to 175o F | 1o F | 0.1o F |
Humidity | 10 to 90% | 2%* | 0.1% |
> 90% | 3%* |
* 0 - 65o C (32 - 150o F)
Expansion Packs(1, 4 and 16 packs available)
Add additional reusable PosiTectorCMM ISsmart probes as required. Each pack consists of a probe, calibration check chamber, saturated salt solution, (NaCl), cap, 2 stackable probe extensions, and A-76/LR-44 coin cell batteries
Replacement chambers, salt solutions, tools, caps and fins are available upon request
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTector CMM IS Frequently Asked Questions
